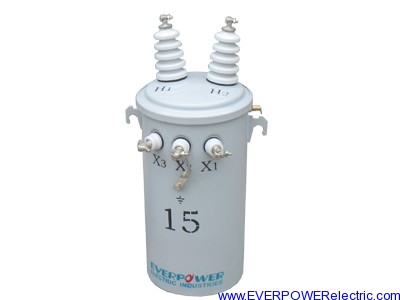

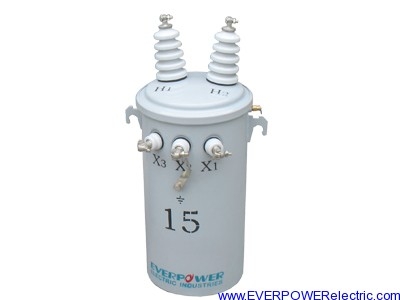

BIL95 ANSI single-phase transformer
bil95 single-phase transformer,conventional transformer, pole mounted transformer, kva transformer
- Brand： EVERPOWER / OEM
Everpower single phase Oil Filled Distribution Transformers are specially designed for the decentralization distribution network of servicing residential
overhead distribution loads of town and countryside(rural area). They are also suitable for light and diversified power applications. Everpower is specialized in Silicon Steel and Amorphous Metal Transformer.
Applicable Standard :
IEEE C57.12.00, ANSI C 57.12.20
IEC 60076
Standard Features (Conventional type)
• Heavy-duty lifting lugs and hanger brackets.
• Tank grounding provisions
• Pressure Relief Device
• High- and low-voltage porcelain bushing(s) with eyebolt terminal (10~100KVA) or spade terminal.
• Round Tank for aesthetic appearance
• Powder Coated Tank Body – Excellent finish (Optional)
• Stainless steel nameplate.
• 18 months standard warranty
• After sales maintenance and spare parts service
Type D16A Single-Phase Pole-mounted Transformer(CRGO Core BIL 95)
|
KVA
|
H.V
|
Taps
|
L.V
|
Loss(W)
|
DIMENSION(mm)
|
E
|
Weight
(Wgt)
|
OIL Qty
(kg)
|
||||
|
NO-LOAD
|
FULL-LOAD
|
A
|
B
|
C
|
D
|
|||||||
|
5
|
13200/
7620
or
11000/
6350
or
12470/7200
|
+2×
2.5%
or
0
|
120
240
480
or
120-240
240-480
|
20
|
105
|
840
|
400
|
480
|
310
|
286
591
|
70
|
16
|
|
10
|
36
|
184
|
860
|
430
|
510
|
340
|
95
|
22
|
||||
|
15
|
48
|
250
|
910
|
430
|
510
|
340
|
120
|
25
|
||||
|
25
|
72
|
360
|
1040
|
480
|
560
|
380
|
158
|
34
|
||||
|
37.5
|
95
|
495
|
1120
|
560
|
610
|
450
|
240
|
55
|
||||
|
50
|
116
|
640
|
1245
|
560
|
610
|
450
|
285
|
59
|
||||
|
75
|
160
|
840
|
1245
|
640
|
680
|
510
|
395
|
76
|
||||
|
100
|
200
|
1080
|
1270
|
680
|
710
|
510
|
450
|
84
|
||||
|
167
|
295
|
1600
|
1480
|
960
|
840
|
610
|
610
|
135
|
||||
